ATX Multi-Pull Half Rack MPHR-780

ATX Multi-Pull Smith Rack MPHR-780

Elite All-In-One Training Station

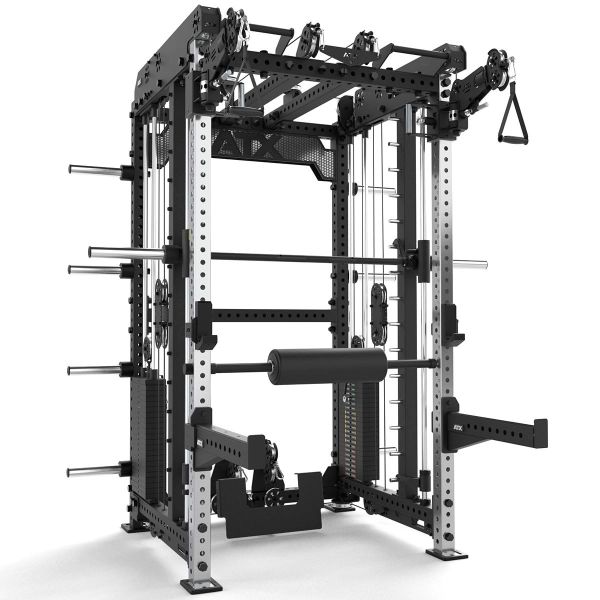

The ATX Multi-Pull Smith Rack MPHR-780 is the ultimate in multi-function strength equipment, combining a half rack, premium linear Smith machine, functional cable trainer, lat pulldown, low row, and pull-up bar in one compact footprint. With its X-Tender Arms and integrated Smith machine - the latter a feature not found on the MPHR-740 or HCR-740 - this rack offers unmatched training versatility for serious lifters and professional facilities.

I pop around to my friend Dan's to check out the MPHR-780 that the team installed there:

Comprehensive Training Utility

• Half Rack with J-Hooks & Spotter Arms: Perform all major barbell lifts with confidence and safety.

• Premium Linear Smith Machine: Guided bar path with ultra-smooth linear ball bearings, perfect for controlled pressing, squatting, and accessory work—rated for up to 200kg.

• Dual 110 kg Weight Stacks (2:1 Ratio): Power the functional cable trainer, lat pulldown, and low row stations for both single-arm and dual-arm movements.

• X-Tender Arms: Fully adjustable, pivoting overhead arms with 170° swivel for cable crossovers, angled pulls, and unique resistance angles—offering more variety than fixed cable points.

• Integrated Multi-Grip Pull-Up Bar: Add bodyweight strength training with multiple grip options.

Engineered for Stability & Durability

• Heavy-Duty Frame: Massive 645kg build using 70×70×3mm steel tubing with precise 50mm hole spacing ensures studio-grade rigidity.

• High-Performance Components:

  • Linear bearings in the Smith machine for whisper-smooth movement at home.

  • Ball-bearing aluminium pulleys and low-stretch steel cables for consistent, responsive operation.

  • Rubber base pads to protect flooring and provide anti-slip stability.

Ergonomics & Expandability

• Custom Fit: Height-adjustable cable pulleys, leg support, and telescopic foot rest for precise, safe positioning.

• Full Accessory Package: Includes J-Hooks, Spotter Arms, X-Tender Arms, leg support, footrest, handles, and carabiners. Eight 50mm storage posts keep plates organized and close at hand.

• Modular & Future-Ready: Compatible with the full range of ATX attachments and accessories.

Certified for Professional Use

Built for the demands of commercial gyms, PT studios, and elite home setups. Certified to European standard EN 20957 I.II.IV Class S for uncompromising safety and performance.

A video review courtesy of Discovering Strength channel:

Why Choose the MPHR-780?

If you want the ultimate combination of power rack functionality, smooth cable training, and guided barbell work, the MPHR-780 ticks all the boxes. The addition of the Smith machine and X-Tender Arms are welcome additions over most functional trainer / half rack combos.

Note: Packaged pallet (large crate) dimensions and weight are 230x78x57h (cm), GW: 694kg

Olympic (2"/ 50mm) weights sold separately.

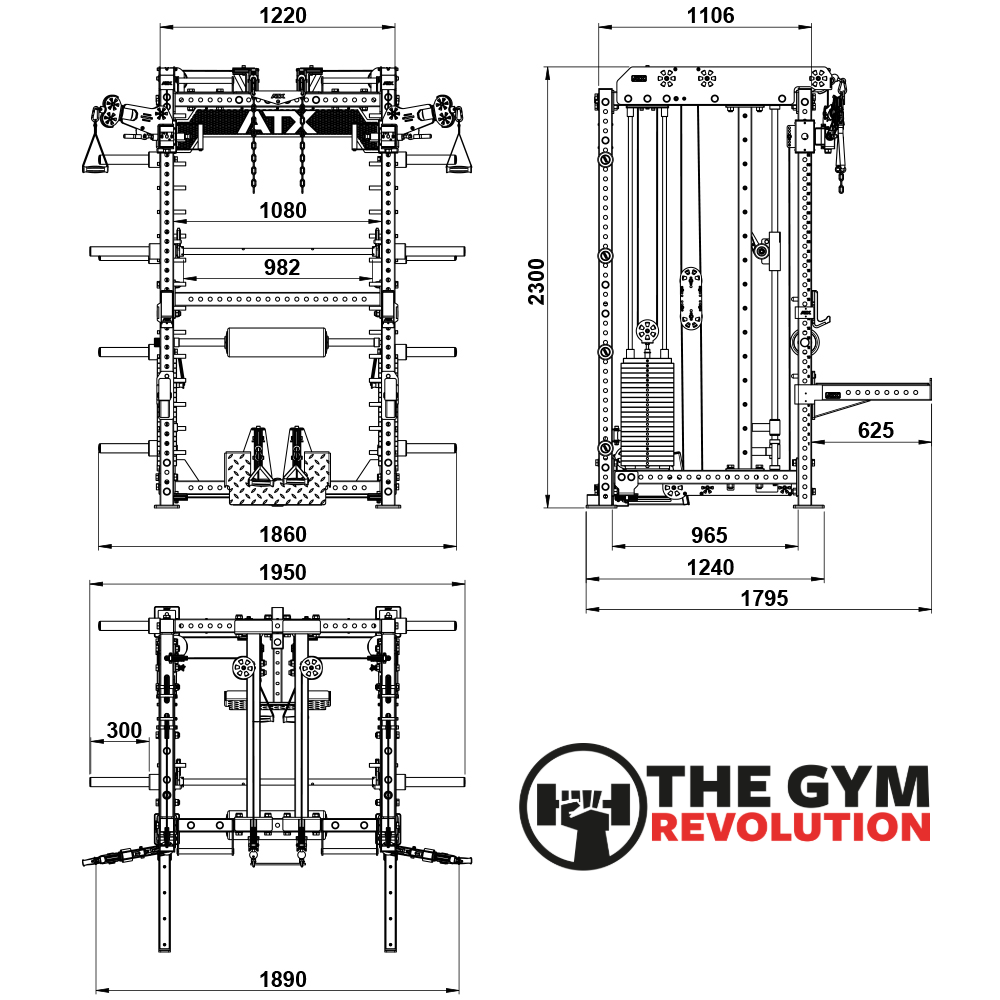

Schematics, showing dimensions of concern, of the MPHR-780 multigym:
