ATX Pendulum Squat PSQ-760

ATX Pendulum Squat PSQ‑760 – Specifications & Product Details Product Overview

The ATX Pendulum Squat (SKU ATX‑PSQ‑760) is a heavy-duty pendulum-style squat machine engineered for serious quadriceps development. It features a biomechanically optimised design, commercial-grade durability, and versatile resistance options, ideal for deep & partial squats with reduced spine load.

Key Features of the PSQ-760

• Ergonomic Lever System: Dual-pivot lever arm with industrial flange bearings ensures smooth, powerful movement and maximized muscular engagement.
• Integrated 20 kg Counterweight: Reduces bottom-range load to support safer ascent from deep squats.
• Dual Roller-Band Pegs: Add resistance bands for customized loading curves and progressive overload.
• Oversized Footplate: Non-slip surface with integrated stance markings; adjustable start height with emergency-stop catch adds stability and safety.
• Premium Padding: Thick lumbar/back cushion designed for comfort and stability under maximal load.
• Olympic Plate Holders: Chrome-plated Ø 50 mm sleeves accept standard weight plates.
• Robust Build Quality: German-engineered, powder-coated steel frame with anti-slip rubber feet, certified EN 20957 I.II.IV Class S for commercial use.
• FREE Squat Ramp, as shown in video review.

We take a look at the ATX Pendulum Squat:

Here's the video review from Massenomics:

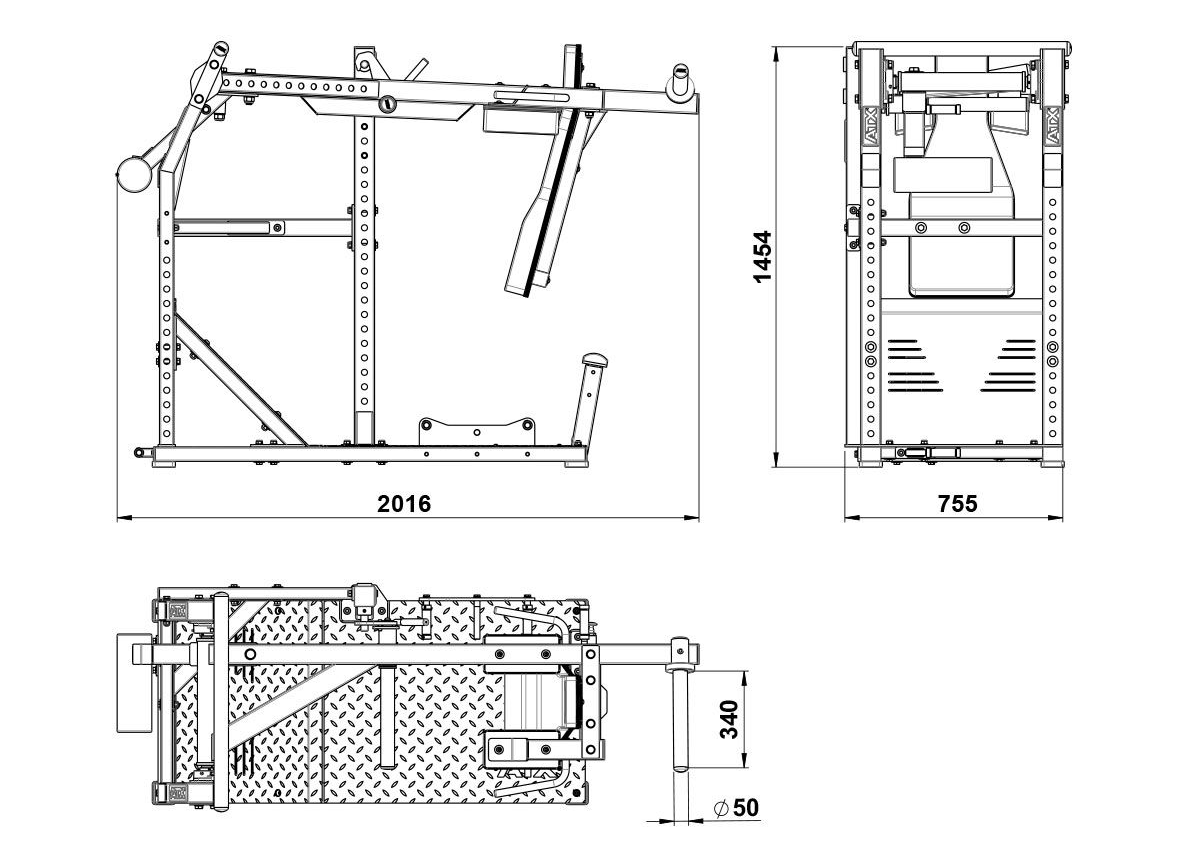

Compact dimensions of the ATX Pendulum Squat:

Tech Specs

Targeted Muscles & Training Benefits

• Primary Focus: Quadriceps (front thigh) hypertrophy with isolated activation.
• Biomechanics: Optimised footplate-to-backrest angle supports deep and partial squat patterns safely.
• Spinal Relief: Counterweight system reduces lumbar load, making it safer for those with back concerns.
• Versatile Resistance: Band pegs allow for accommodating resistance—ideal for explosive movements and accommodating different strength curves,

Commercial Ready
Built to thrive in high-traffic gyms and elite training facilities, the ATX Pendulum Squat is certified EN 20957 Class S and designed for daily use in challenging environments.

Delivery & Setup

• Ships disassembled with clear, step-by-step assembly instructions for easy setup
• Olympic weight plates & resistance bands shown in imagery are not included.

Why Choose the ATX Pendulum Squat?

1. Quad-Centric Design – Specialized pendulum geometry ensures focused activation of the quadriceps while minimizing hip and back stress.
2. Built Tough – 164 kg of premium steel and heavy-duty bearings built to last in commercial environments.
3. Smart Resistance – Counterweight and band options offer a customizable training experience scalable to all strength levels.
4. User Safety & Comfort – Anti-slip plate, ergonomic padding, emergency stops and adjustable footplate ensure secure, comfortable sessions.

Who Is It For?

• Strength Athletes & Bodybuilders: Focused quad development with safe mechanics.
• Commercial Gyms: Requires space and heavy-duty equipment built to last.
• Rehab & Sports Training: Controlled loading and adjustable support make it suitable for injury prevention and rehab contexts.

Unlock optimized quad gains with the ATX Pendulum Squat PSQ‑760 — a professional-grade squat machine engineered for intensity, safety, and commercial durability.
